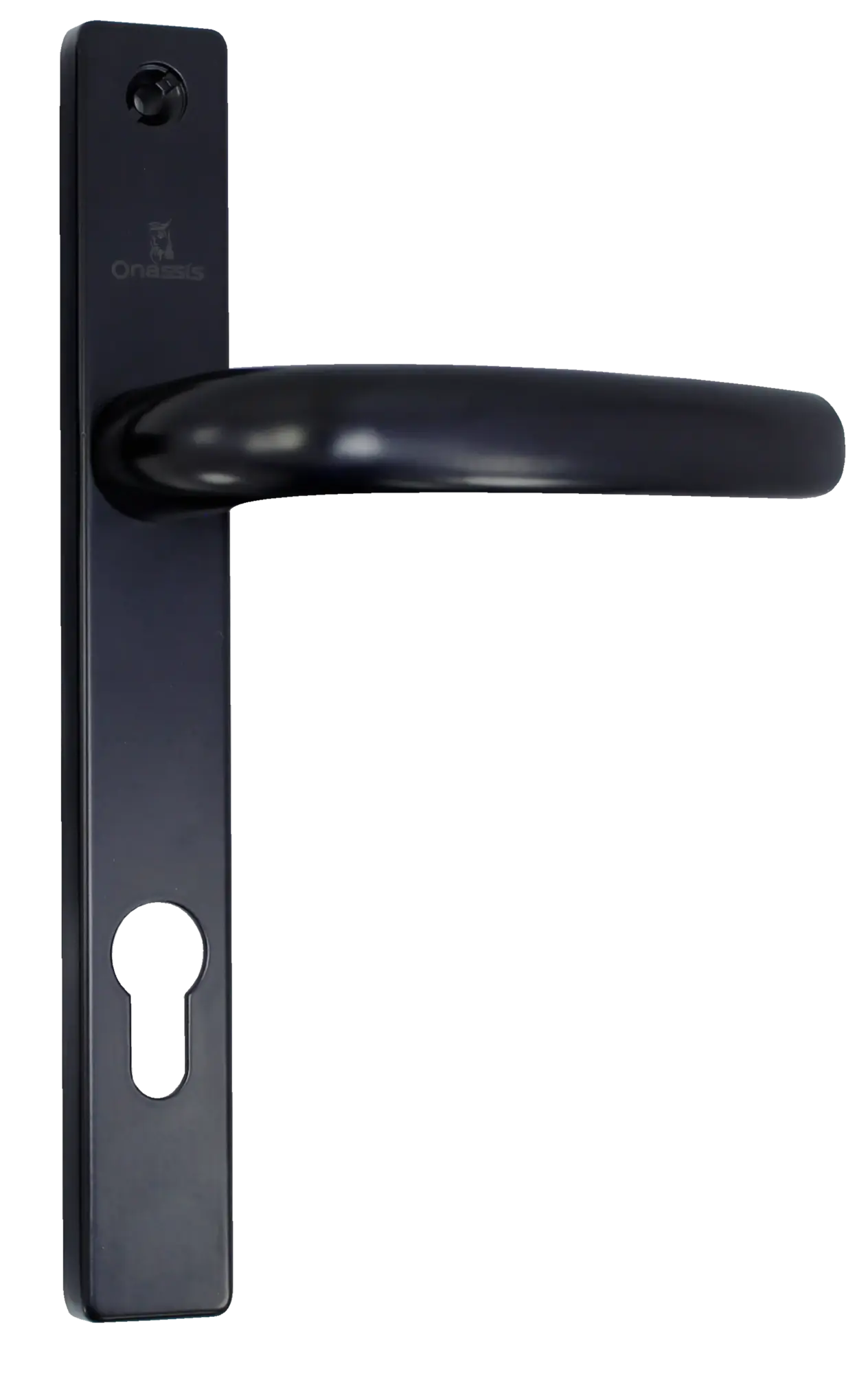

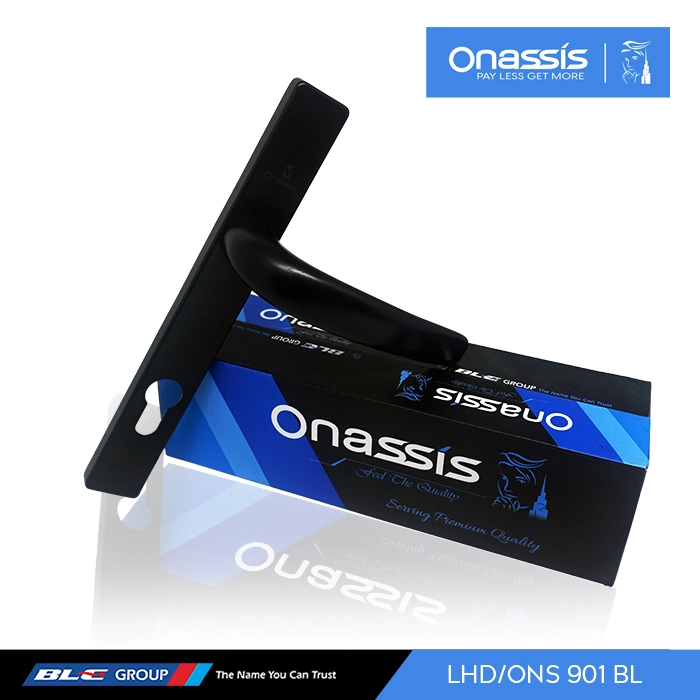

BLACK SERIES
LHD/ONS 901 FEATURES

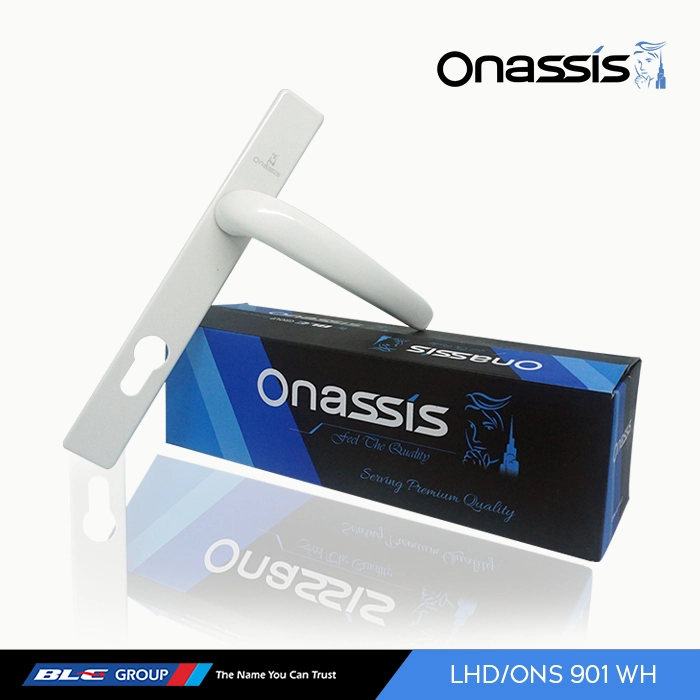

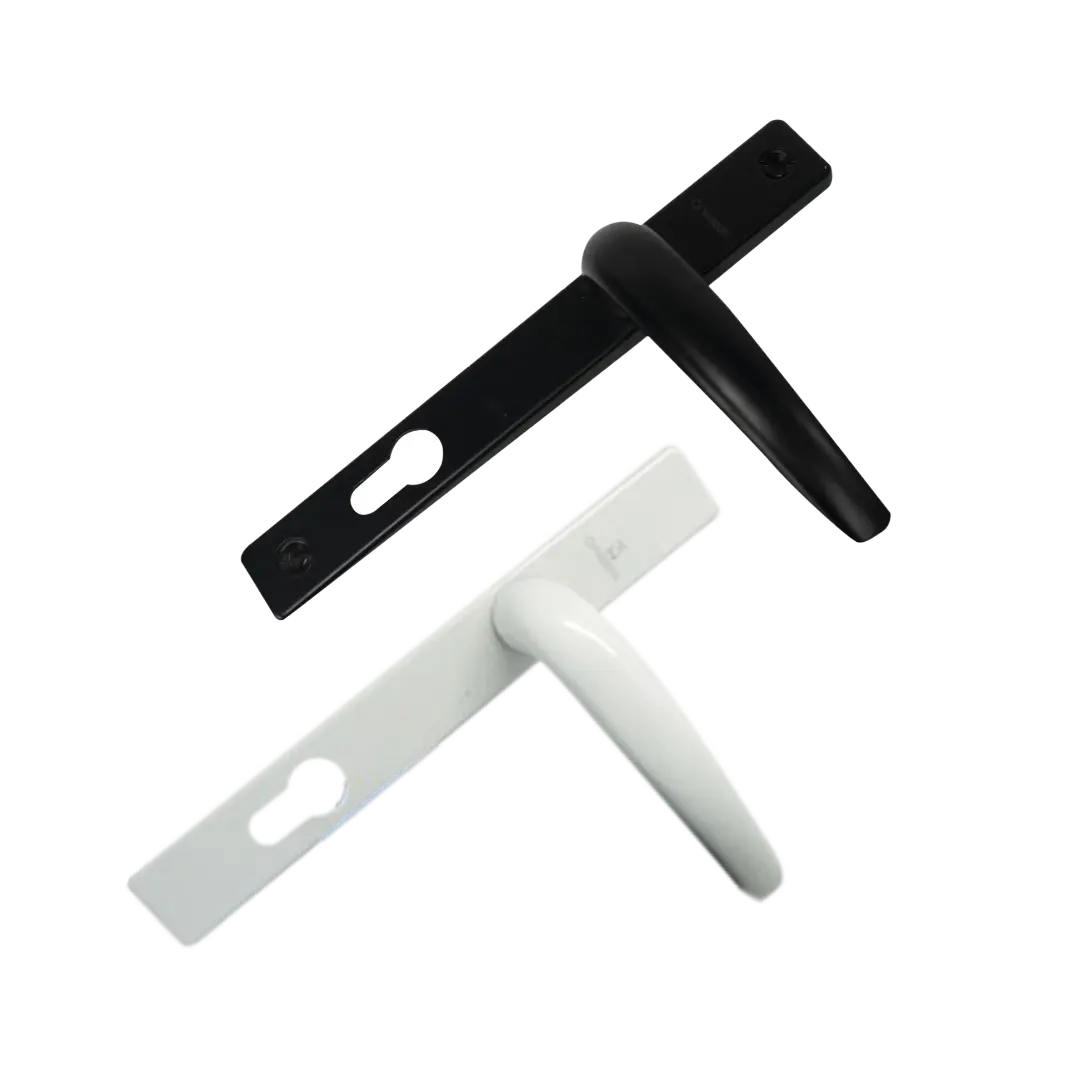

Available in White and Black
Black Series 901 Features:
- Material : Zinc Alloy
- Finishing : Powder Coating
- Color : Black and White
- For Aluminium Framed Door
- Compatible with LOCK MORTISE BACKSET 30mm
SIZE DETAIL
- Handle Length : 120 mm
- Handle Thickness : 60 mm
- Handle Plate Height : 220 mm
- Handle Plate Width : 27 mm
- Handle Plate Thickness : 11 mm
- Distance (Door to Handle) : 60 mm

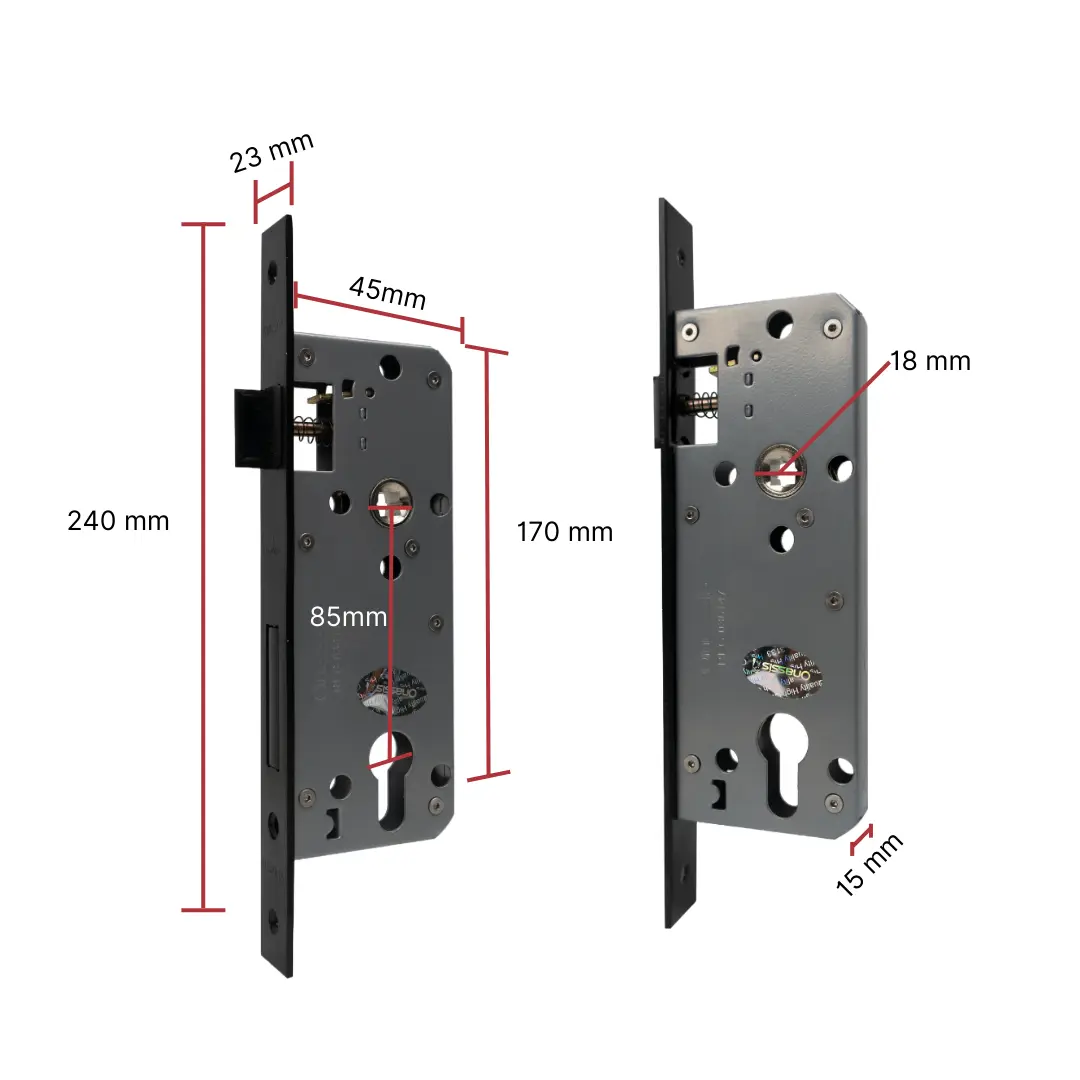

Mortise Backset 30mm (Bought separately)
- Faceplate Height : 240 mm
- Faceplate Width : 23 mm
- Backplate Height : 170 mm
- Backplate Width : 45 mm
- Backplate Thickness : 15 mm
- As-As : 85 mm
- Spindle diameter : 18 mm
HANDLE DETAIL
The Black Series is Onassis handle series with BLACK theme to complete your minimalism heart and soul. Designed with proper research about minimalism and simplicity trend for achieving the monochrome aesthetic by combining design language with the elegance of the interior of a dream home. High skilled hand presents high quality and high performance of Black series door handles. Lifetime warranty for mechanical lock/mortise.
Buy Black Series 901 at our official online shop Now!
